$2,639.00 $3,299.00

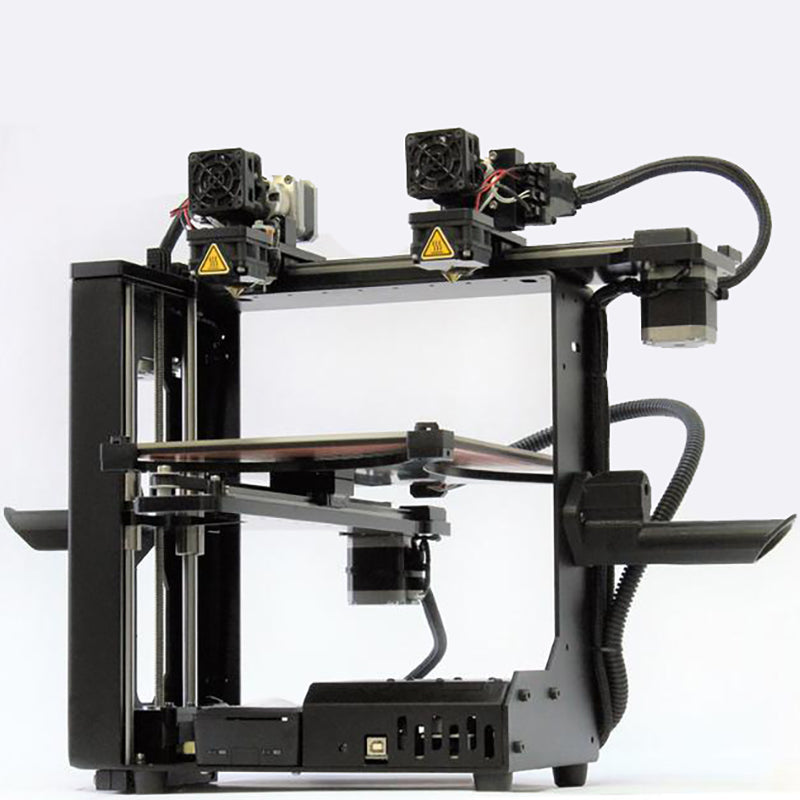

The MakerGear M3-ID has changed the way dual is done. It is the first desktop 3D printer to fully support duplication printing with independent extruders.
Unlike traditional dual systems, where both extruders are locked into the same task, the M3-ID’s extruders work both independently and simultaneously, doubling your printing capacity.
The M3-ID is made for the long haul and excels at high-volume, high-quality print jobs thanks to its rock-solid steel frame and touch probe-powered True Leveling.
With industrial-grade precision and reliability in a machine compact enough to sit on your desk, the M3-ID is built for prototyping and production. Print crisp, clean lines on multicolor models; mix and match a large variety of materials to achieve the ideal balance of desired properties; and make complex and intricate parts using soluble support materials.
Independent Dual Extruders for fast multi-material printing and use of soluble supports.
Linear Rails of industrial-grade, Cast Tooling Plate Components, Direct Drive Extruders .
Touch Probe for automatic and reliable leveling of Heated Bed .
WiFi/Ethernet Connectivity offering remote control and monitoring capabilities.
Onboard Computer with 10GB storage.
USB Port enabling users to print files stored on flash drives.
Simplify 3D , the leading independent slicing software.
OctoPrint for MakerGear offers one-click file preparation and design-to-print integration.
MacOS, Windows, Linux, iOS & Android Compatibility.
Build Dimensions | |
Build Plate | |
Assisted Leveling | Yes - True-Leveling + Auto-Leveling |
Filament Feed | Direct (non-Bowden). |
Materials | |
Nozzle | |
Maximum Extruding Temperature | 40 W heater and thermistor rated to 300 °C. |
Hot End | |
Print technology | FFF (Fused Filament Fabrication) |
X/Y Motion | Independent axes with high precision linear rails guiding motion driven by kevlar reinforced belts. |
Z motion | 10 mm rods guide motion driven by lead screw. |
Layer Resolution | |
Print head travel speed | 80-450 mm/sec |
Ambient operation temperature | 15 ˚C to 32 ˚C (59 ˚F to 90 ˚F) |
Storage temperature | 0 ˚C to 32 ˚C (32 ˚F to 90 ˚F) |
Operating Sound | lower than 65 dBA |
Machine Weight | 13.5 kg (29.5 lbs) |
Machine Dimensions with spool and full range of motion | |
shipping box dimensions | |
AC input | 100 - 120 V (4 A)/220 - 240 V (2 A), 47 - 63 Hz |
Power requirements | 24 V DC @ 15 A |
Power consumption | 360 W max |
Software | |
Connectivity | Wifi, LAN, USB |
*CA Prop 65 | WARNING: This Filament - when used in the operation of 3D Printers or 3D Pens - can expose you and others in the same room to styrene, a chemical known to the State of California to cause cancer. www.P65Warnings.ca.gov ALWAYS OPERATE THIS PRODUCT IN A WELL-VENTILATED AREA. |
LCD Screen Setup Instructions- Installation Instructions
M3-IDs are in stock and ready to ship.
