  Ready to Run, Built to Last

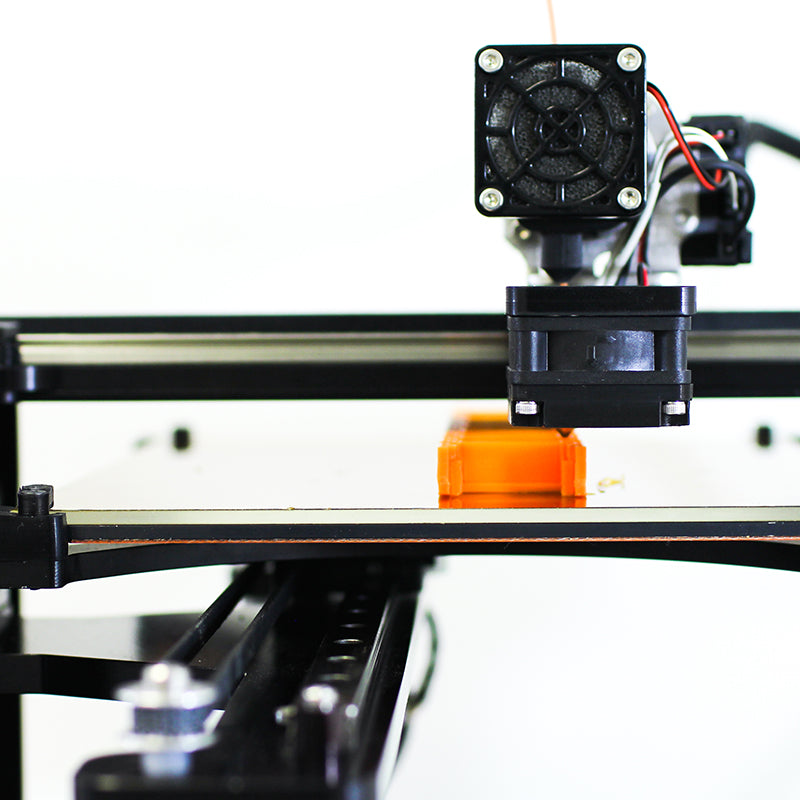

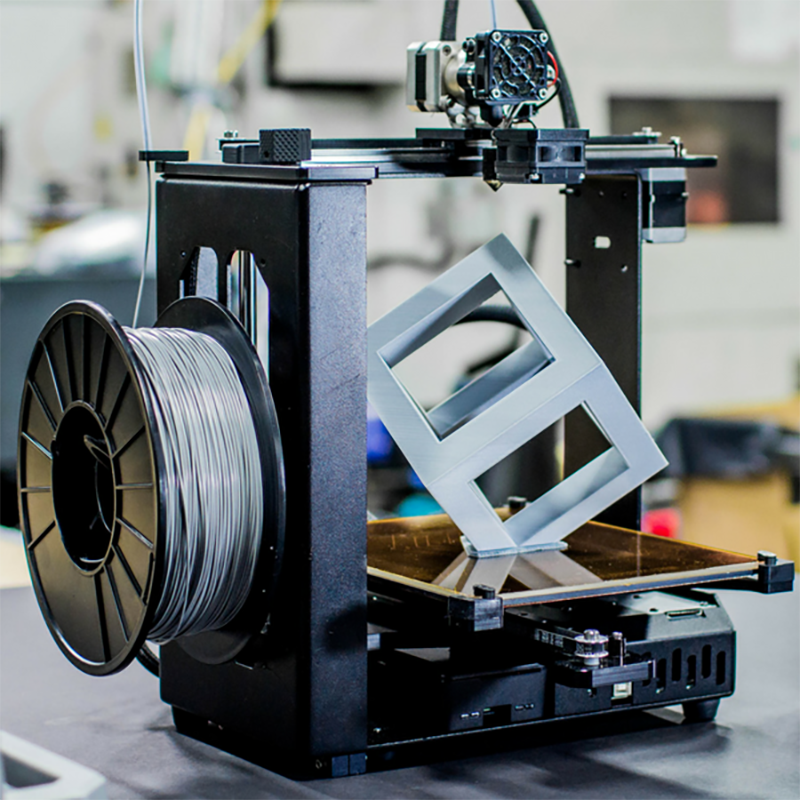

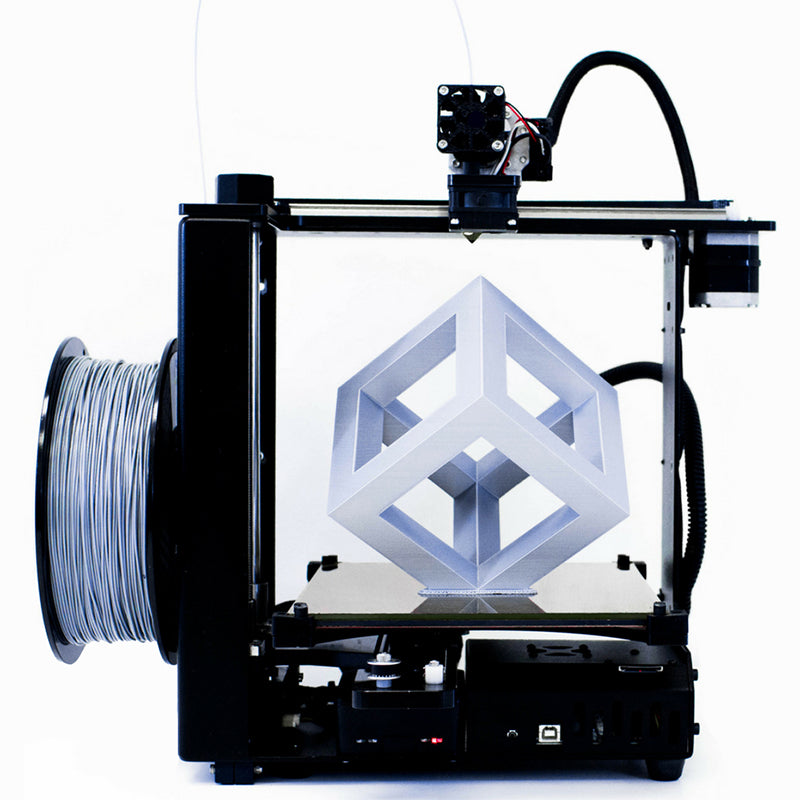

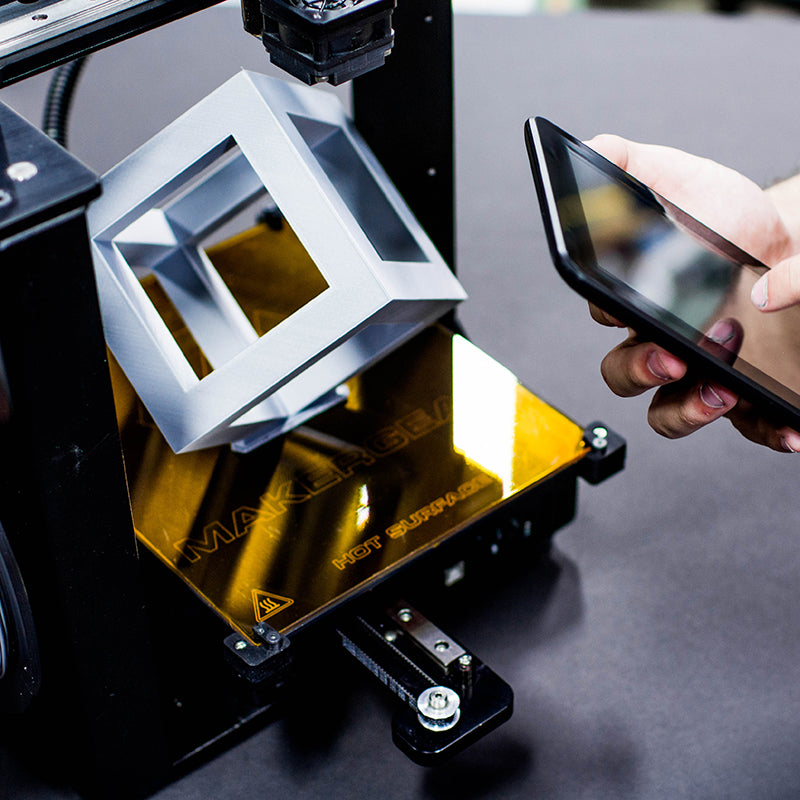

  The MakerGear M3-SE desktop 3D printer is the embodiment of both performance and reliability.  With its steel frame and precision-machined components, the M3-SE is made for the long haul. It delivers outstanding print quality and dimensional accuracy thanks to its industrial-grade linear rails, MakerGear’s True Leveling system, and precision cooling. The M3-SE prints a broad range of materials, and is easy to use and maintain. With WiFi and ethernet connectivity, a built-in USB port, and an integrated OctoPrint user interface, the M3-SE offers total control from your favorite device. Prepare STL files in one click, choose from pre-configured material profiles, or upload your own custom profiles for even greater optimization.
• Linear Rails of industrial grade, Cast Tooling Plate Components & Direct Drive Extruder.

  Touch Probe for automatic and reliable leveling of Heated Bed . WiFi/Ethernet Connectivity offering remote control and monitoring capabilities. Onboard Computer with 10GB storage. USB Port enabling users to print files stored on flash drives. OctoPrint for MakerGear offers one-click file preparation and design-to-print integration. MacOS, Windows, Linux, iOS & Android Compatibility.

• Build Dimensions	203 x 232 x 203 mm
  Build Plate	Up to 110 °C. Borosilicate glass build plate coated with polyimide film.
  Assisted Leveling	Yes - True-Leveling + Auto-Leveling
  Filament Feed	Direct (non-Bowden).
  Materials	1.75 mm. ABS*, ASA*, HIPS*, Nylon, PET-G, PET-T, PLA, polycarbonate, polypropylene, PVA, TPE, TPU, metal composites, wood composites, carbon fiber composites, and more.
  Nozzle	Ships with 0.35 mm brass (0.25mm, 0.5mm, 0.75mm brass and 0.35mm and 0.50mm steel available).
  Maximum Extruding Temperature	40 W heater and thermistor rated to 300 °C.
  Hot End	Swappable V4 Hot End.
  Print technology	FFF (Fused Filament Fabrication)
  X/Y Motion	Independent axes with high precision linear rails guiding motion driven by kevlar reinforced belts.
  Z motion	10 mm rods guide motion driven by lead screw.
  Layer Resolution	0.020 - 0.350 mm (20 - 350 micron)
  Print head travel speed	80-450 mm/sec
  Ambient operation temperature	15 ˚C to 32 ˚C (59 ˚F to 90 ˚F)
  Storage temperature	0 ˚C to 32 ˚C (32 ˚F to 90 ˚F)
  Operating Sound	lower than 65 dBA
  Machine Weight	12 kg (26.5 lbs)
  Machine Dimensions with spool and full range of motion	Width x Depth x Height: 533 mm (21") x 610 mm (24") x 533 mm (21”).
  shipping box dimensions	19 kg (42 lbs.). 535 mm x 535 mm x 535 mm (21" x 21" x 21”).
  AC input	100 - 120 V (4 A)/220 - 240 V (2 A), 47 - 63 Hz
  Power requirements	24 V DC @ 15 A
  Power consumption	360 W max
  Software	The latest version of OctoPrint for MakerGear is included with the M3-SE. With no proprietary software required, the MakerGear M3-SE is compatible with a wide variety of free and commercial software programs.
  Connectivity	Wifi, LAN, USB
  *CA Prop 65	WARNING: This Filament - when used in the operation of 3D Printers or 3D Pens - can expose you and others in the same room to styrene, a chemical known to the State of California to cause cancer. www.P65Warnings.ca.gov ALWAYS OPERATE THIS PRODUCT IN A WELL-VENTILATED AREA.

• - MakerGear M3-SE 3D printer with V4 hot end

  - Power supply with adjustable input voltage (115 V or 230 V)

  - Power cord compliant with your country's power outlets

  - 1 kg spool of black PLA

  - 8 inch x 10 inch borosilicate glass print surface with applied film

  - Tool set

  - Sample print

  - User guide

• Important: Review the Terms of Service updated on 5/31/22 before purchasing.

• MakerGear will include the standard power cord used in the country to which the 3D printer is shipped.

  MakerGear shipping fees cover transportation only. Customs duties, domestic sales tax, etc. are the responsibility of the customer.

  Customers who live in Canada and other certain countries who have applicable free trade agreements with the US will not be charged customs duties, though domestic sales tax may still apply. Customers in South Korea will need to fill out their portion of the Certificate of Origin form and send it to customs@makergear.com for completion by MakerGear to eliminate customs duties.
